AHR Slurry Pump Wear Parts

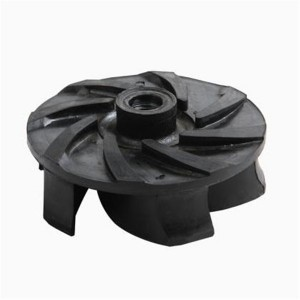

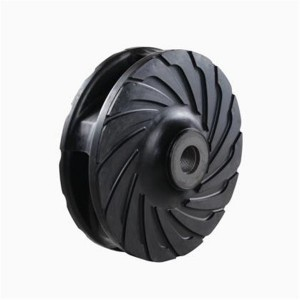

Slurry Pump Rubber Impeller
Slurry pump impeller can play an extremely important role in the operation of slurry pump. By rotating, it can help slurry pump meet the needs of the equipment. The slurry pump impeller is easy to be worn out, so we search for the special materials to prolong the lifespan of impeller.
Rubber slurry pump impellers are used to deal with the corrosive slurry with blunt particles. They are made of natural rubber, synthetic rubber, EPDM Rubber, Nitrile Rubber, or any other as you required.
We proudly manufacture quality rubber slurry pump impellers and other replacement parts for some famous pump manufactures, which are 100% REVERSE

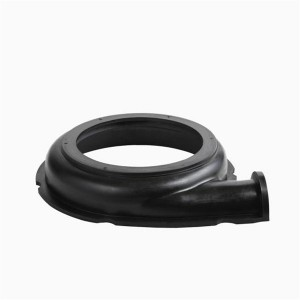

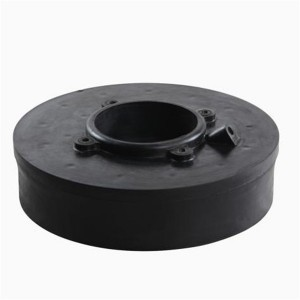

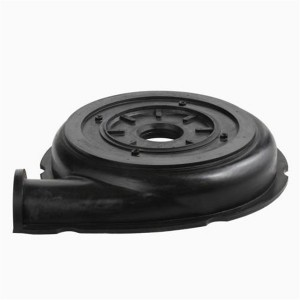

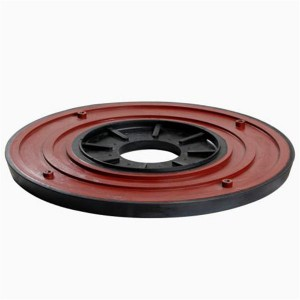

Slurry Pump Rubber Liner

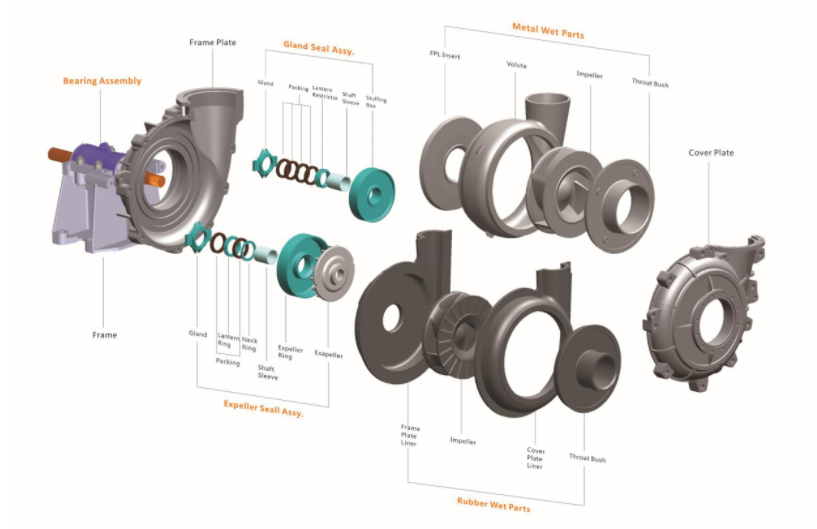

The rubber wet parts are great wear resistance and corrosion resistance, usually used for acid working conditions. Such as tailing in mining industry, slurry with small particles and no rough edges. The whole displacement part includes Cover Plate Liner, Throat bushing, Frame plate liner, Frame Plate Liner Insert.
The rubber material we used has superior resistance to all other materials in fine particle slurry applications. The antioxidants and anti degradents used in our material have been optimized to improve storage life and reduce degradation during use. The high erosion resistance is provided by the combination of its high resilience, high tensile strength and low shore hardness.
Rubber Pump Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
|YR26||Anti-thermalBreakdown Rubber||Natural Rubber||YR26 is a black, soft natural rubber. It has superior erosion resistance to all other materials in fine particle slurry applications. The antioxidants and ant degradants used in RU26 have been optimized to improve storage life and reduce degradation during use. The high erosion resistance of RU26 is provided by the combination of its high resilience, high tensile strength and low Shore hardness.|
|YR33||Natural Rubber(Soft)||Natural Rubber||YR33 is a premium grade black natural rubber of low hardness and is used for cyclone and pump liners and impellers where its superior physical properties give increased cut resistance to hard, sharp slurries.|
|YR55||Anti-thermalNatural Rubber||Natural Rubber||YR55 is a black, Anti-corrosive natural rubber. It has superior erosion resistance to all other materials in fine particle slurry applications.|
|YS01||EPDM Rubber||Synthetic Elastomer|
|YS12||Nitrile Rubber||Synthetic Elastomer||Elastomer YS12 is a synthetic rubber which is generally used in applications involving fats, oils and waxes. S12 has moderate erosion resistance.|
|YS31||ChlorosulfonatedPolyethylene (Hypalon)||Synthetic Elastomer||YS31 is an oxidation and heat resistant elastomer. It has a good balance of chemical resistance to both acids and hydrocarbons.|
|YS42||Polychloroprene (Neoprene)||Synthetic Elastomer||Polychloroprene (Neoprene) is a high strength synthetic elastomer with dynamic properties only slightly inferior to natural rubber. It is less effected by temperature than natural rubber, and has excellent weathering and ozone resistance. It also exhibits excellent oil resistance.|

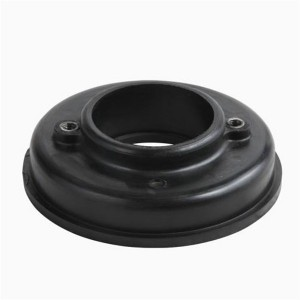

Slurry Pump Expeller Ring
Slurry Pump Expeller Ring is used for AH/HH/L/M slurry pumps, The expeller ring is together work with expeller for the slurry pumps. They can not only help seal the pump, but also reduce the centrifugal force. The design and material of expeller is significant to its service life This seal is suitable for most slurry pumping applications. It provides the major advantage that no gland water is required. An expeller running in a ring of the same material and working with the vanes on the back face of the blade ensures a leak proof seal. A grease lubricated packed gland with neck and lantern rings leakage when the pump is stationary. The inlet head influences the effectiveness of the expeller seal and under normal operating conditions this type of seal is completely leak proof.
We can provide Expeller Ring of various rubber materials for your application in complex environment.
|Slurry Pump Expeller Ring||AH Slurry Pumps||Materials|
|B029||1.5/1B-AH, 2/1.5B-AH||High chrome, Rubber|
|C029||3/2C-AH||High chrome, Rubber|
|D029||4/3C-AH, 4/3D-AH||High chrome, Rubber|
|DAM029||6/4D-AH||High chrome, Rubber|
|E029||6/4E-AH||High chrome, Rubber|
|EAM029||8/6E-AH, 8/6R-AH||High chrome, Rubber|
|F029||8/6F-AH||High chrome, Rubber|
|FAM029||10/8F-AH, 12/10F-AH, 14/12F-AH||High chrome, Rubber|
|SH029||10/8ST-AH, 12/10ST-AH, 14/12ST-AH||High chrome, Rubber|
|TH029||16/14TU-AH||High chrome, Rubber|
|Slurry Pump Expeller Ring||HH Slurry Pumps||Materials|
|CH029||1.5/1C-HH||High chrome, Rubber|
|DAM029||3/2D-HH||High chrome, Rubber|
|EAM029||4/3E-HH||High chrome, Rubber|
|FH029||6/4F-HH||High chrome, Rubber|
|Slurry Pump Expeller Ring||M Slurry Pumps||Materials|
|EAM029||10/8E-M||High chrome, Rubber|
|FAM029||10/8F-M||High chrome, Rubber|
|Gravel Pump Expeller Ring||G(H) Gravel Pumps||Materials|
|DAM029||6/4D-G||High chrome, Rubber|
|E029||8/6E-G||High chrome, Rubber|
|F029||10/8F-G||High chrome, Rubber|
|GG029||12/10G-G, 14/12G-G, 12/10G-GH||High chrome, Rubber|
|HG029||14/12TU-G,16/14TU-G,16/14TU-GH||High chrome, Rubber|

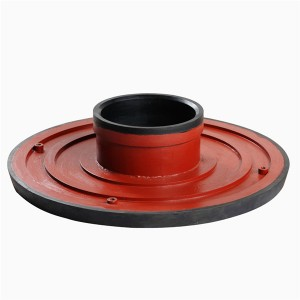

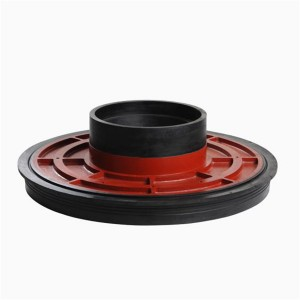

AHR Slurry Pump Rubber THROAT BUSH
Slurry pump throat bush is one of wet parts in horizontal slurry pump which directs slurries to impeller, it is suction side liner which is connected with cover plate.
Throat bush is common in bigger pumps, because throat bush and volute liner are normally in one solid piece in small pumps. The design of slurry pump throat bush is based on cost effective in manufacturing and operation.
Many users and sellers use the term ‘throatbush’ interchangeably with ‘throat bush’, it is a common and generally accepted alternate spelling.
Slurry pump throat bushes are normally made in high chrome alloy or natural rubber, special materials are also available.
AHR PUMP THROAT BUSH CODE
|6/4D/E||E4083||R55, S01, S21, S31, S42|
|8/6F||F6083||R55, S01, S21, S31, S42|
|10/8F||F8083||R55, S01, S21, S31, S42|
|10/8ST||G8083||R55, S01, S21, S31, S42|
|12/10||G10083||R55, S01, S21, S31, S42|
|14/12||G12083||R55, S01, S21, S31, S42|
|16/14||H14083||R55, S01, S21, S31, S42|
