AREX FRP (Fiberglass Reinforced Plastic) Hydrocyclone parts — Product Introduction
1. Executive Summary
AREX Industrial Technology Co., Ltd. is a leading manufacturer and supplier of high-performance hydrocyclone wear parts and accessories for the mining, oil & gas, and industrial processing sectors. Building on decades of expertise since its establishment in 1995, AREX develops a comprehensive range of FRP (Fiberglass Reinforced Plastic)-based hydrocyclone components designed to deliver superior wear life, corrosion resistance, and operational efficiency in the most demanding slurry processing environments.
AREX hydrocyclone accessories are engineered to be fully compatible with mainstream cyclone brands, including Weir Cavex series, providing cost-effective, high-quality alternatives without compromising on performance or durability.
2. Modular Design Philosophy
AREX adopts a highly modular design approach for its hydrocyclone component system. As illustrated in the exploded view diagram, each hydrocyclone is decomposed into independent, replaceable modules—including cone liners, feed chamber liners, vortex finders, spigot liners, and sealing components.
This modular architecture enables operators to:
Replace only the worn internal liners rather than the entire cyclone body
Adjust key component dimensions to optimize separation performance for changing feed conditions
Significantly reduce unplanned downtime and maintenance labor costs
Extend the overall service life of the hydrocyclone assembly

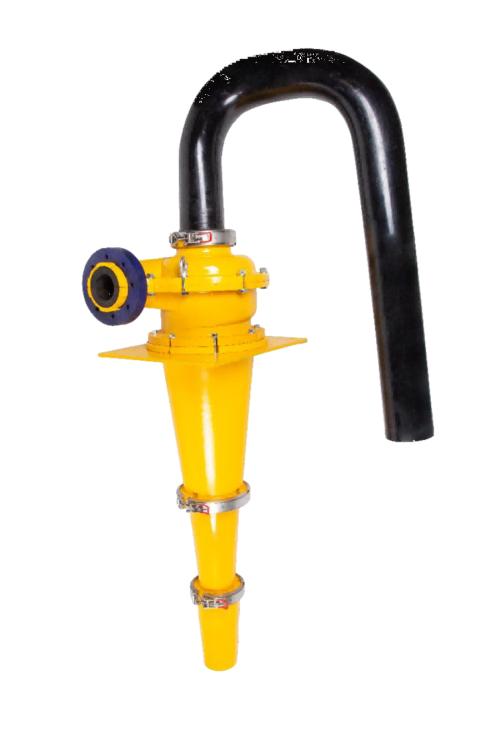

3. Core Component Breakdown
AREX supplies a full suite of FRP and composite-material hydrocyclone accessories covering every critical wear zone from feed entry to underflow discharge:

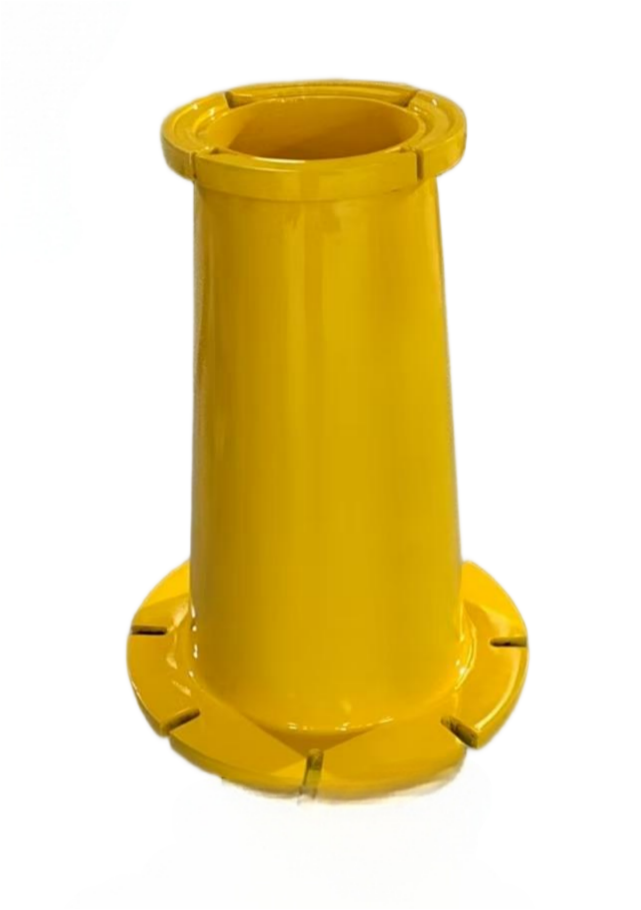

3.1 Upper & Lower Cone Liners
Precision-molded from high-strength, wear-resistant composite materials, the cone liners form the primary separation chamber. Their smooth interior surface maintains laminar flow characteristics and resists the intense erosive action of high-velocity slurry, ensuring stable cut-point performance over extended operating cycles.

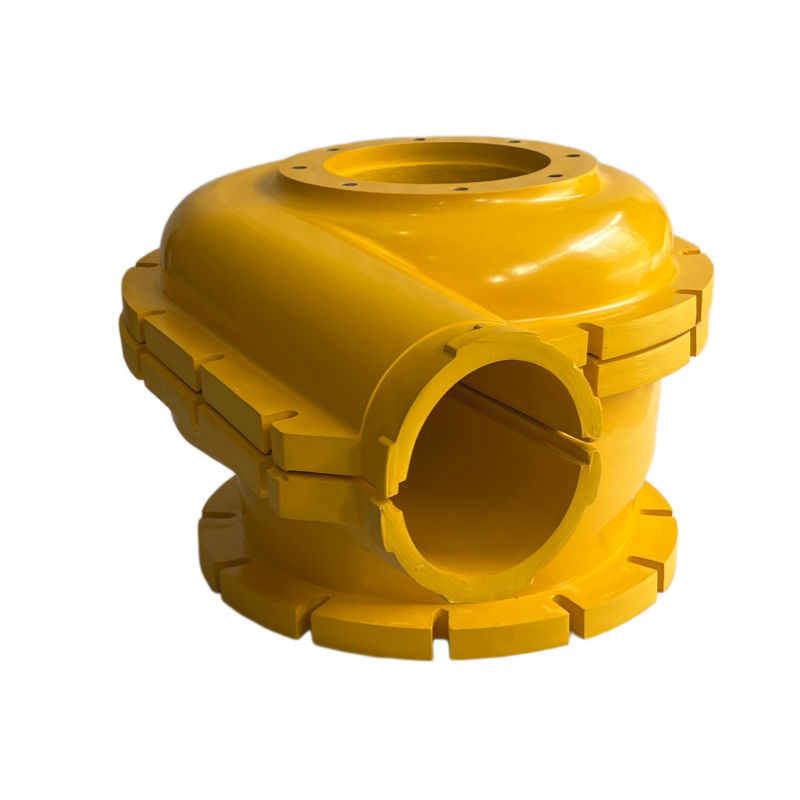

3.2 Feed Chamber Liner & Cover Liner
The feed chamber is subjected to the highest impact forces as the slurry enters the cyclone at high velocity. AREX's specialized feed chamber liners absorb and dissipate this kinetic energy, protecting the outer FRP shell from premature failure. The cover liner ensures top-seal integrity and long-term durability.
3.3 Feed Flange
Engineered for secure connection to upstream feed manifolds or pump discharge lines, the feed flange ensures vibration-free, leak-proof integration into the plant piping system, maintaining consistent feed pressure and flow distribution.
3.4 Vortex Finder
Installed at the top center of the cyclone, the vortex finder serves as the overflow outlet and a key determinant of separation sharpness. AREX offers vortex finders in multiple diameters and lengths, allowing operators to fine-tune the cut point and overflow/underflow split ratio for specific ore characteristics.
3.5 Spigot Liner (Apex Liner)
Positioned at the cyclone's discharge tip, the spigot liner controls the underflow (concentrates) exit. Manufactured from ultra-wear-resistant materials, it prevents premature enlargement of the orifice diameter that would otherwise degrade separation efficiency. AREX provides spigot liners in various bore sizes and material grades to match throughput requirements and abrasive conditions.
3.6 Spray Guard Liner
Located immediately above the spigot, the spray guard liner prevents short-circuiting and excessive splashing of the underflow stream, ensuring that the majority of solids report correctly to the underflow discharge rather than being lost to the overflow.
3.7 Quick Release Clamp with O-Ring
Constructed from stainless steel, the quick-release clamp system allows field personnel to disassemble and reassemble cyclone modules rapidly—without the need for heavy lifting equipment or specialized tools. Combined with precision-machined O-ring seals, this system maximizes on-site maintenance efficiency and minimizes production interruptions.
4. FRP (Fiberglass Reinforced Polymer) Material Advantages
AREX offers hydrocyclone shells and selected accessories constructed from premium FRP (also known as GRP – Glass Reinforced Plastic), a composite material consisting of a polymer matrix reinforced with glass fibers. Compared to traditional carbon steel, stainless steel, or rubber-lined steel constructions, FRP delivers compelling advantages:
|
Property |
FRP Advantage |
| Corrosion Resistance | Exceptional resistance to acids, alkalis, salts, and a broad range of industrial chemicals; ideal for aggressive chemical processing, wastewater treatment, and corrosive mineral circuits. |
| High Strength-to-Weight Ratio | With a density of only ~1.5–2.0 g/cm³ (roughly 1/4 to 1/5 that of carbon steel), FRP achieves tensile strengths comparable to steel, dramatically reducing shipping weights, installation loads, and structural support requirements. |
| Electrical Insulation | Naturally non-conductive, FRP provides inherent electrical isolation—a critical safety advantage in electrolysis and certain metal recovery processes. |
| Low Thermal Conductivity | Acts as an effective thermal insulator, helping maintain process temperature stability in heated slurry applications. |
| Design Flexibility | Complex geometries and custom shapes can be molded via hand lay-up, pultrusion, or RTM processes to match specific cyclone configurations. |
| Low Maintenance | Once installed, FRP structures require minimal ongoing maintenance—routine visual inspection and occasional cleaning are typically sufficient. |
Material Composition: AREX FRP components utilize carefully selected polymer resin systems (polyester, vinyl ester, or epoxy) tailored to the specific operating environment, each offering distinct advantages in chemical resistance, temperature tolerance, and mechanical strength.
5. Target Applications
AREX FRP hydrocyclone accessories are widely deployed across:
Mining & Mineral Processing — Classification, desliming, fines recovery, dense-medium separation, and tailings management
Oil & Gas — Drilling fluid solids control, produced water treatment
Industrial Wastewater Treatment — Suspended solids removal, sludge thickening
Aggregates & Construction Materials — Sand washing, fines classification
Chemical Processing — Corrosive slurry handling and separation
6. Why Choose AREX?
Proven Track Record — Over 30 years of industrial manufacturing experience since 1995
Certified Quality — Products manufactured under strict quality control systems (API, ISO9001 compliant)
Full Customization — Custom sizes, materials, and configurations available to meet unique process requirements
Global Supply Capability — Products exported to over 30 countries with reliable, fast delivery
Cost-Effective Excellence — Premium performance at competitive factory-direct pricing
7. Conclusion
AREX FRP hydrocyclone accessories combine innovative modular engineering, precision manufacturing, and the inherent advantages of advanced composite materials. Whether your priority is extreme abrasion resistance, superior corrosion protection, or lightweight design for simplified installation, the AREX accessory portfolio delivers measurable improvements in plant uptime, maintenance efficiency, and total cost of ownership.
Contact AREX Industrial Technology Co., Ltd. today to discuss your hydrocyclone requirements and discover how our FRP solutions can optimize your separation process.
