Mine Hoist Drum Liner (PE/PP Material) – Lightweight, Wear-Resistant & Green Protection
Key Advantages
✅ Eco-Friendly PE/PP Material, Balanced Performance
Made of high-density polyethylene (HDPE) or polypropylene (PP), low density (0.9-0.97g/cm³), 60% lighter than metal liners, reducing drum load
Modified surface with Shore D 70-80 hardness, 3-5x higher wear resistance than standard plastics, suitable for humid/dusty mine environments
✅ Corrugated Protrusions + Regular Patterns (From Real Photos)

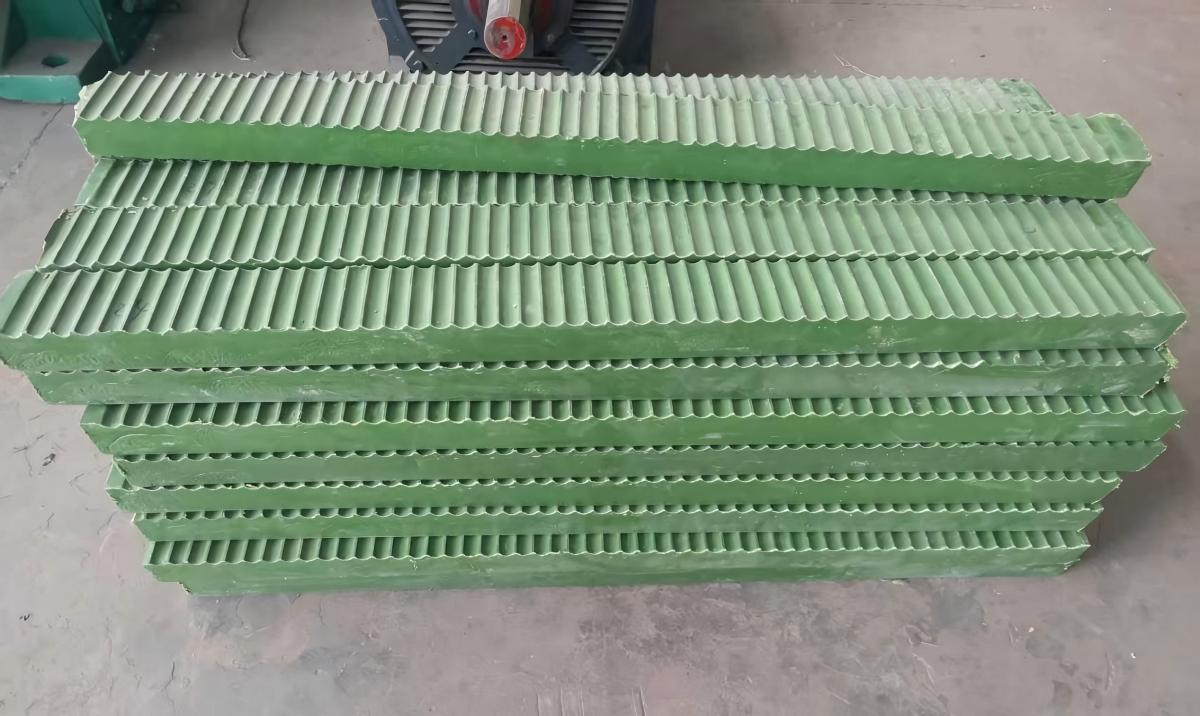

Retes "regularly arranged corrugated protrusions" (pitch 50mm × height 10mm) as seen in Photo 3, increasing contact area with wire ropes and dispersing impact
Anti-slip diamond/diagonal patterns pressed on surface, friction coefficient stabilized at 0.2-0.3 to prevent rope slippageplica
✅ Vivid Green Visualization + Easy Maintenance

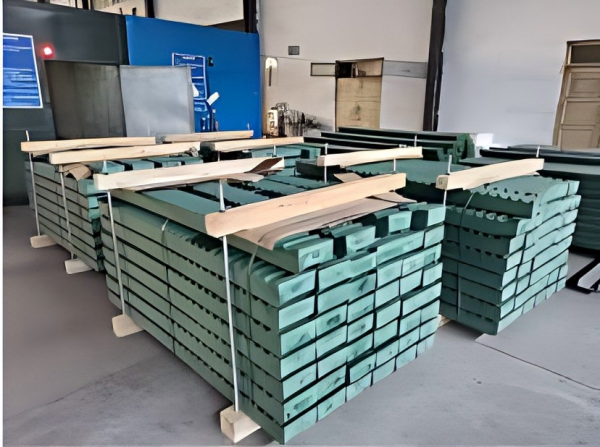

Industrial vivid green color (Pantone 17-6030 TPG) for quick visual identification of wear areas (as shown in Photo 3’s stacked liners)

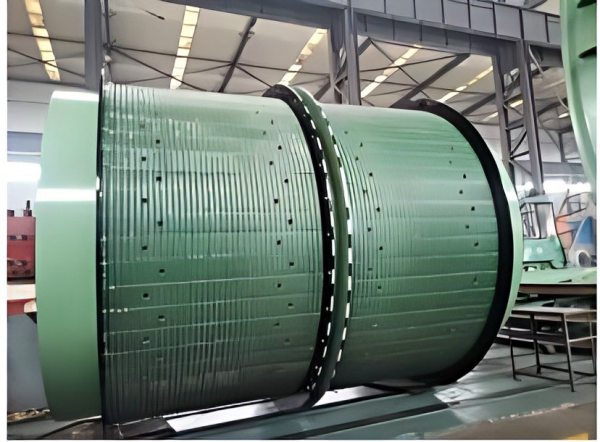

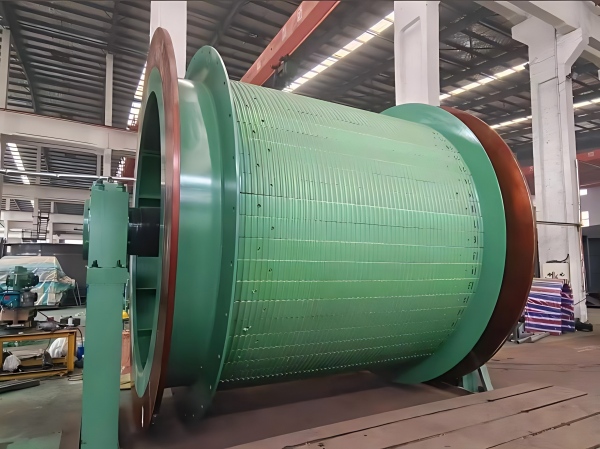

Modular buckles + white bolts (M12) dual fixation (per Photo 5 installation), single-block replacement in 20 mins by one person, stackable storage
✅ Weather & Corrosion Resistant, Extended Lifespan
Withstands -30℃~100℃ extreme temperatures, acid/alkali/salt corrosion resistant, ideal for underground humidity/salt spray
Passed 50,000-cycle load tests (simulating hoist start/stop impacts), no cracking/deformation
Comparison Between Plastic and Wood Liners for Mine Hoist Drums (Based on Over 10-Year Field Tests)
Field tests on single-rope mine hoists with drum diameters of 0.8m-6m over a decade confirm that plastic liners (primarily engineered plastics) offer significant advantages over traditional wood liners, as detailed below:
I. Core Advantages of Plastic Liners
High Mechanical Strength & Long Service Life
Compressive strength 7-10x higher than wood liners, with no crushing or uneven rope groove wear during long-term use;
Verified service life exceeds wood liners by over 5x, drastically reducing replacement frequency.
Water-Resistant, Lightweight, & Low Equipment Load
Density approx. 0.98g/cm³ (lower than water-absorbed wood liners), nearly non-water-absorbent;
Lighter than wood liners, avoiding increased drum rotational inertia and equipment reactive power loss, thus improving operational efficiency.
Precision Molded Forming, Easy Installation & Steel Wire Rope Protection
Precision-molded with smooth rope grooves and accurate dimensions, ensuring neat steel wire rope alignment during installation;
Effectively prevents "rope biting" and "rope skipping," significantly extending steel wire rope service life.

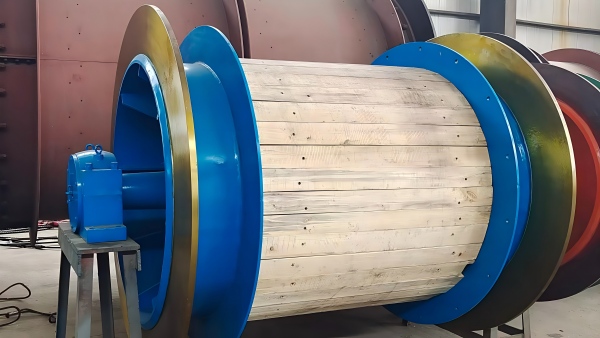

II. Defects of Wood Liners & Necessity for Elimination
Wood liners, limited by their material properties, fail to meet modern mining demands due to:
Severe Impact on Steel Wire Rope Life: Prone to wear and low strength, requiring frequent replacement and compromising overall hoist reliability;
Installation Flaws Leading to Operational Risks: Wood grain direction aligns with steel wire rope, causing convex grooves to flatten easily and leading to uneven wear; disordered installation may also trigger rope misalignment and skipping, threatening safety.
III. Iterative Upgrade of Engineered Plastic Liners (Factory R&D Since the 1990s)
To address these issues, our factory pioneered mine-resistant engineered plastic liners in the early 1990s, further optimizing performance over wood liners:
Extended Service Life: Verified lifespan 5x longer than wood liners, reaching up to 10 years in some conditions;
High Load-Bearing Capacity: Allows greater contact pressure, with no crushing or uneven wear even under long-term heavy loads;
Excellent Weather Resistance: Resists dry/wet environments, particularly suited for harsh underground mining conditions (high humidity, dust);
Lightweight & Stability: Low density (<1g/cm³), non-water-absorbent, and free from increasing drum rotational inertia or reactive power loss;
Efficient Installation & Maintenance: Precision-molded for accurate sizing and smooth surfaces, cutting installation workload/time by 50% vs. wood liners, while ensuring neat rope alignment and eliminating biting/skipping risks.
Conclusion: Plastic liners (especially engineered plastics) have become the ideal alternative to wood liners, widely adopted for mine hoist drum protection due to their high strength, long life, lightweight, easy installation, and steel wire rope protection capabilities.
