Chemical Hose

Short Description:


Product Detail

FAQ

Product Tags

Many years of experience serving our industrial partners has connected us with the most reliable Industrial Hose manufacturers in the world. We are your all-in-one source for Industrial connectors. Effective solutions lead to better results, and a well-designed and fabricated piping system gives you a competitive advantage. Make a positive impact on your project with AREX-PIPE brands for your piping solutions. We tailor our piping solutions to match your needs — from initial engineering support to final installation. Whether it’s managing project requirements or installation schedule challenges, we provide flexible solutions for any application scenario. Clients who have special requirement about the customized hose or pipe parts, please consult us to get more solution.

Our rubber UHMWPE chemical hoses are specifically manufactured for the transfer of harsh chemicals and media, conveying liquids such as organic and inorganic acids, ketones, paints, esters and aromatic and aliphatic hydrocarbons (dependent on the liner). All types are highly suitable for external applications due to their EPDM outer cover, providing excellent resistance to ozone and weathering. Our hoses also comply with FDA regulations, making them suitable for use with foodstuffs such as animal and vegetable oils, while the EPDM options are manufactured from an electrically conductive, anti-static rubber compound.

The chemical delivery hoses are typically manufactured with textile fiber ply reinforcements to provide increased working and burst pressures. Our chemical suction hoses include an additional wire helix reinforcement that helps the hose maintain its properties under vacuum applications.

All our chemical hoses are normally supplied by the meter. Depending on the hose type and size required, minimum orders and pack quantities may apply. We can also supply hose assemblies pre-fitted with a wide range of hose couplings and clamps to your requirement. Further information, including availability, specification and standards is available by clicking the ‘view product’ buttons below. Should you need any further information, or would like to discuss your requirements, please contact our technical sales teams.

  1. UHMWPE chemical suction and delivery hose is manufactured with an EPDM cover and a polyethylene liner. It is reinforced with textile plies, a wire helix and an anti-static wire. This hose is also available to buy online at PAR Direct by clicking the link above.

Applications:

Designed for the suction and delivery of acid and chemicals. Also popular in the food industry.

Key Features:

Temperature: -25°C to +100°C (+130°C short term sterilizing).

Safety Factor: 3:1 minimum.

Cover is resistant to chemicals, ozone and weather.

Liner has excellent resistance to chemicals and is food quality in accordance with FDA 177:2600.

Product
Code
Inside
Diameter
(mm)
Outside
Diameter
(mm)
Working
Pressure
(Bar)
Burst
Pressure
(Bar)
Bend
Radius
(mm)
Weight
(Kg/m)
Vacuum
(Bar)
Coil
Length
(mtrs)
AREX-19ID 19 31 16 48 125 0.67 0.9 61
AREX-25ID 25 37 16 48 150 0.77 0.9 61
AREX -32ID 32 44 16 48 175 0.93 0.9 40
AREX -38ID 38 51 16 48 225 1.16 0.9 61
AREX -51ID 51 65 16 48 275 1.60 0.9 61
AREX -63ID 63 78 16 48 300 2.090 0.8 40
AREX -76ID 76 92 16 48 350 2.760 0.8 40
AREX -102ID 102 118 16 48 450 3.670 0.8 40

1.UHMWPE chemical delivery hose is manufactured with an EPDM cover and a polyethylene liner. It is reinforced with textile plies and has an anti-static wire. This hose is also available to buy online at PAR Direct by clicking the link above.

Applications:

Designed for the delivery chemicals and acids. Popular in the food industry with its food approved liner.

Key Features:

Temperature: -25°C to +100°C (+130°C short term sterilizing).

Safety Factor: 3:1 minimum.

Cover is resistant to chemicals, ozone and weather.

Liner has excellent resistance to chemicals and is food approved.

2.EPDM chemical suction and delivery hose is manufactured from an electrically conductive EPDM rubber tube with a wrapped black EPDM cover. It is reinforced with polyester cord, a steel wire helix and anti-static copper wires. This chemical hose has a minimum safety factor of 4:1 and a vacuum of 0.78 bar.

Key Features:

Temperature: -35°C to +95°C.

Excellent chemical, ozone and weather resistance.

Standards:

Conforms to EN12115.

Product Code Inside Diameter (mm) Outside Diameter (mm) Working Pressure (Bar) Bend Radius (mm) Weight (kg/m) Coil Length (mtrs)
AREX -25ID 25 37 10 152 0.85 60
AREX -32ID 32 44 10 192 1.05 60
AREX -38ID 38 51 10 228 1.22 60
AREX -51ID 51 65 10 305 1.63 60

3.EPDM chemical delivery hose is manufactured from an electrically conductive EPDM rubber tube with a wrapped black EPDM cover. It is reinforced with a textile braid and anti-static copper wires and has a 4:1 minimum safety factor. The hose conforms to EN12115 standards and has excellent resistant to chemicals, making this hose a popular choice when conveying chemicals.

Key Features:

Temperature: -35°C to +95°C.

Excellent chemical, ozone and weather resistance.

Standards:

Conforms to EN12115.

Product Code Inside Diameter (mm) Outside Diameter (mm) Working Pressure (Bar) Weight (kg/m) Coil Length (mtrs)
AREX -19ID 19 31 16 0.78 60
AREX -25ID 25 37 16 1.00 60
AREX -32ID 32 46 16 1.15 60
AREX -38ID 38 53 16 1.45 60
AREX -51ID 51 66 16 1.70 60

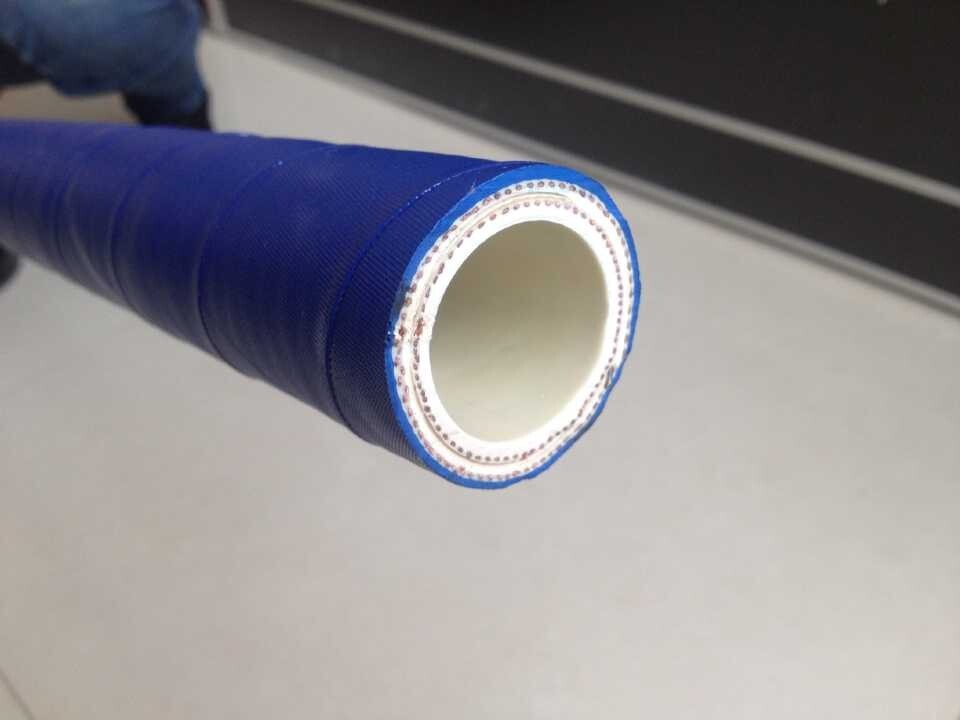

Chemical Hose4

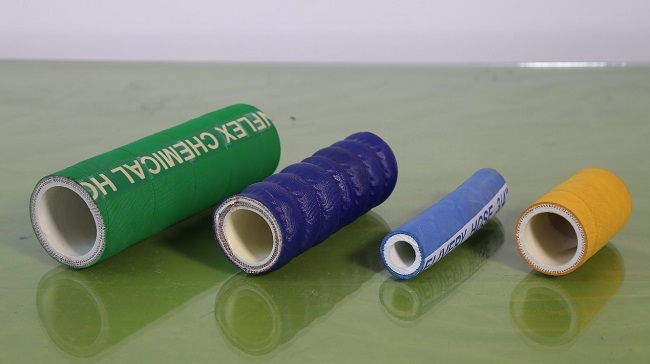

Chemical Hose5
